LOProportionalFixtureAttribute Class Reference

A proportional attribute is one whose value can be any value within a given range. More...

#import <LOProportionalFixtureAttribute.h>

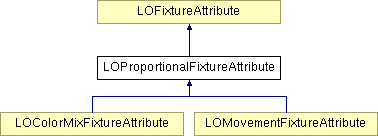

Inheritance diagram for LOProportionalFixtureAttribute:

Public Member Functions
(id)	- initWithName:
	Initilise the object with a name, and set the type to LOFixtureAttributeTypeProportional.
(BOOL)	- is16Bit
	Test if this is a 16 bit attribute.
(void)	- set16bit:
	Sets if the attribute is 16 bit.
(void)	- setRange:forByte:
	Set the range for the given byte type.
(unsigned)	- count
	Count how may elements this attribute has.
(void)	- updateElementOutput:toLevel:forByte:
	Update the element output for a given byte type (LSB or MSB).
(void)	- updateElementOutput:toLevel:
	Update the element output, automatically taking into account if its a 16 bit element.
(void)	- updateElementOutput:toReal:
	Update the element output, automatically taking into account if its a 16 bit element.
(BOOL)	- updateOutputWithObject:
	Update the attribute to a given value.
Protected Attributes
NSMutableArray *	elements
	An array of LOProportionalFixtureElement.

---

Detailed Description

A proportional attribute is one whose value can be any value within a given range.

Such as an intensity attribute.

---

Member Function Documentation

- (unsigned) count

Count how may elements this attribute has.

- (id) initWithName:

(NSString *)

aName

Initilise the object with a name, and set the type to LOFixtureAttributeTypeProportional.

- (BOOL) is16Bit

Test if this is a 16 bit attribute.

This checks the first element only

See also:

set16Bit;

- (void) set16bit:

(BOOL)

the16Bit

Sets if the attribute is 16 bit.

This sets the first element only

See also:

- is16Bit:

- (void) setRange:		(LOFixtureRange *)	range
forByte:		(LOFixtureAttributeByteType)	byte

Set the range for the given byte type.

Setting a MSB byte automatically changes the the attribute to 16 bit.

See also:

addRange:forByte:

- (void) updateElementOutput:		(unsigned)	index
toLevel:		(unsigned)	level

Update the element output, automatically taking into account if its a 16 bit element.

Parameters:

	index	The index of the element to update
	level	0-255 for an 8bit attribute, or 0-65535 for a 16 bit one.

See also:

- updateElementOutput:toLevel:forByte:

- (void) updateElementOutput:		(unsigned)	index
toLevel:		(unsigned char)	level
forByte:		(LOFixtureAttributeByteType)	byte

Update the element output for a given byte type (LSB or MSB).

See also:

updateElementOutput:

- (void) updateElementOutput:		(unsigned)	index
toReal:		(float)	level

Update the element output, automatically taking into account if its a 16 bit element.

Parameters:

	index	The index of the element to update
	level	0-1 as a floating point value

See also:

- updateElementOutput:toLevel:

- (BOOL) updateOutputWithObject:

(id)

anObject

Update the attribute to a given value.

anObject can be an NSNumber contianing a float or an unsigned int. The equivelant method updateElementOutput:toLevel or updateElementOutput:toReal will be called with index set to 0

anObject may also be an NSArray, containing NSNumber objects. Each array entry will be treated as above, but with index being set to the index value of the array entry.

Reimplemented from LOFixtureAttribute.

Reimplemented in LOColorMixFixtureAttribute.

---

The documentation for this class was generated from the following files:

• LOProportionalFixtureAttribute.h
• LOProportionalFixtureAttribute.m
